Anti‑IR Functional Optical Lenses
- OEM,ODM
- ZHANGZHOU, CHINA
- 30days
- 200,000pcs/month
Anti‑IR Functional Optical Lenses
Infrared radiation accounts for over 50% of solar energy, making it the largest proportion of invisible light in sunlight. However, most people only focus on UV and blue light damage, while largely ignoring the chronic eye harm caused by infrared rays. Infrared radiation is divided into near-infrared (780–1300nm) and far-infrared (1300–2000nm), with extremely strong penetrating power that can reach approximately 30mm beneath the skin. In particular, near-infrared rays can pass through the iris and reach the retina directly. Long-term cumulative exposure accelerates ocular tissue aging and increases the risk of eye lesions such as cataracts. Meanwhile, excessive incident light wave energy in strong light environments causes glare. Ordinary sun lenses only block UV rays and cannot reduce full-spectrum strong light energy, failing to relieve visual fatigue and glare discomfort.
Aojie Optical Anti-IR functional optical lenses are equipped with exclusive non-polarized anti-glare technology, delivering precise optical modulation across a wide wavelength range of 200nm–2000nm. While maintaining clear vision, the lenses effectively reduce incident light wave energy and block both near and far infrared radiation. Without relying on a polarizing structure, they achieve strong anti-glare performance and avoid visual interference with electronic screens and dashboards caused by polarized lenses, providing comprehensive light health protection for outdoor work, driving, high-altitude activities and other scenarios.
Infrared radiation accounts for over 50% of solar energy; the lenses cover full-spectrum modulation from 200nm to 2000nm and reduce 60% of incident light wave energy; they precisely block near-infrared (780–1300nm) and far-infrared (1300–2000nm) rays; infrared rays can penetrate approximately 30mm under human skin, and near-infrared rays can reach the retina and cause cumulative damage.
Product Advantages
Full-Spectrum Infrared Blocking & Comprehensive Light Protection
The lenses cover the whole band of near-infrared (780–1300nm) as well as far-infrared (1300–2000nm). Their unique property of limiting infrared rays penetration fills in the gap of the protection offered by traditional lenses, which are able to prevent only the harmful UV rays, to an extent, and establishes a far more extensive defense system that covers all the aspects of the eyes light protection.
Non-Polarized Anti-Glare Technology with Friendly Visual Experience
The optical design, which incorporates a special non-polarized anti-glare technology, works by the precise reduction of almost all (about 60%) of light wave energy in the 200-2000nm range of the spectrum through optical coating. This technology makes it possible to have a comfortable viewing experience by eliminating even the strongest light glares at the root. Besides, the non-polarized feature does not show the rainbow patterns in a display and does not make the dashboard visual image a bit deviated and thus the technology is great for those who spend most of their time on driving and working on computer or other electronic gadgets.
Long-Term Ocular Health Protection & Reduced Lesion Risk
Through the blockage of the penetration of infrared rays, the lenses significantly minimize the harm of photothermal damages caused by near-infrared rays on the retinas and irises and thus help in delaying the ocular aging and reducing the induction possibility of cataract when exposed to long periods of light irradiation. So it is highly suitable for the ones engaged in long-term outdoor work and activities.
Excellent Optical Flatness & Natural Clear Imaging
In addition to meeting the infrared blocking and anti-glare performance requirements, the lenses also feature the top levels of optical homogeneity and flatness characteristics which result in distortion-free vision and true colors reproduction, and ultimately help reducing eyes strain of a person during long-time wearing.
Wide Scene Adaptability & Custom Development Support
The lenses can be perfectly applied to the situations of driving, sports activities, working with safety goggles, as well as different kinds of eyeglass frames. We offer customer customization for the base curves, diameter, and appearance of the lenses to meet their functional and aesthetic needs in diverse scenarios of outdoors, manufacturing or driving
Technical Specification
| Refractive Index | 1.56 / 1.60 / 1.67 |
| Abbe Value | 32 – 42 |
| Visible Light Transmittance | > 90% |
| IR Blocking Range | 780nm – 2000nm |
| Incident Light Energy Reduction | ≥ 60% |
Customization Services
1. Lens Prescription & Frame Matching - The options for full personalization of sphere, cylinder(axis), ADD (add), prism, etc., in all combinations, are here at AOJIE. For every order, we perform the analysis of the individual measurements of pupil distance (PD), wrap angle of frame, pupil height (PH), pantoscopic tilt (PP), and vertex distance (VD) and optimize the parameters accordingly.
2. Material & Refractive Index Options - The substrate available comprises PC, Nylon etc. We offer three grades of refractive indices: 1.56, 1.60, and 1.67
3. Coating Function Customization - Besides Anti-Reflective (AR) coating, we can also offer a combination with other features e.g., blue light filter, anti-fog, etc. Mirror coating, antibacterial, hard (6-8H) coating - all can be configured accordingly.
4. Tint & Polarization Customization - Different colors of either solid or gradient tints are available; photochromic tint is available with variable speed of color change and different levels of color depth; as an alternative, polarized version can reduce the glare up to 95% or more.
5. Branding & Packaging Customization - Laser can be used to engrave the lens LOGO. The lens pouches, lens cases, outer cartons and instruction manual can all be custom-printed to reflect the clients' brand identity.
6. Flexibility for different types of orders - From sample orders (1 - 5 pieces) to trial ones (50 - 200 pieces) as well from bulk orders (200 + pieces) including annual framework agreements and rush ones, all are supported.
Company Profile

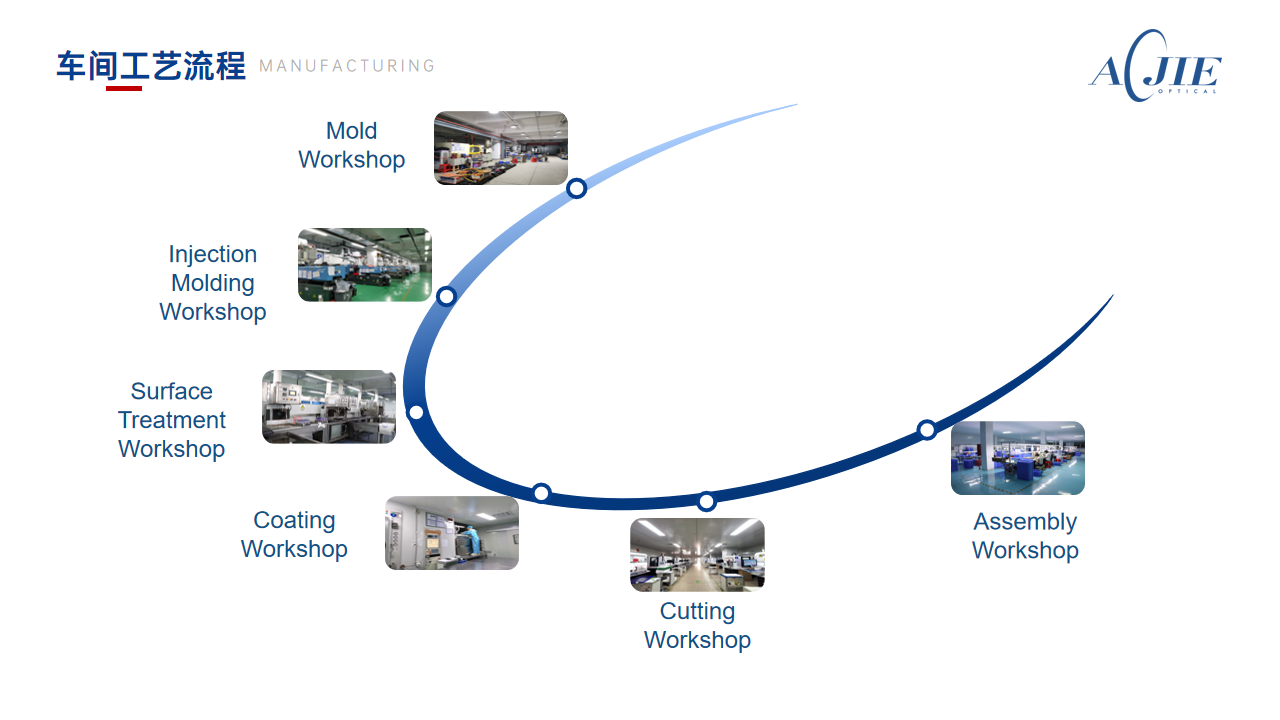

To ensure high-level cleanliness and safety of a work environment in the manufacturing process, we constructed an ultra-clean production area at our factory covering approximately 35,722.0 ㎡ of space. Inside our plant, we have a full set of optical laboratories, various types of optical coating chambers and imported testing and inspection equipment. Our capabilities in-house comprise developing mold tools, making substrates, coating by vacuum deposition, and doing freeform RXs (prescription for customized lenses).
Our optical development team comprises engineers with a strong background in optical algorithms, material properties, coating applications and mechanical design that make up our dedicated optics R&D department. There are also a number of advanced lens machines available to us, with a dedicated line of RX freeform custom lenses. Our annual production volume of the various optical components amounts to a total of 10 million units.
Our manufacturing standards and safety protocols are based on the international requirements and therefore AOJIE Optical product quality and safety are confirmed against several major optical safety standards including ANSI Z80.3:2018、EN ISO 12312-1:2022、and AS/NZS 1067.1:2016(A1:2018). Through this way, our products are sold in many countries all over the world.
Client & Brand Partners
One-stop manufacturer for sunglasses and prescription eyewear at competitive OEM/ODM prices for many major European and American outdoor eyewear brands
Qualified as a custom-lens supplier to many top domestic optical retail chains
A lens parts manufacturer for companies making sporting protective gear and cycle accessories
Quality Control Standard
| Sampling Standard | ANSI Z80.3:2018 EN ISO 12312-1:2022 AS/NZS 1067.1:2016(A1:2018) |
| Pre‑shipment Inspection | Power accuracy, PD tolerance, coating adhesion, abrasion resistance, UV performance & cosmetic defects |
| Defect Rate | ≤0.3% |
| End‑user Return Rate | End‑user return rate＜1.2% (vs. 5‑8% for generic aspheric lenses) |
FAQ
What is infrared radiation and why is it harmful to eyes?
Infrared radiation accounts for over 50% of solar energy and is the largest proportion of invisible light in sunlight. It is divided into near-infrared (780–1300nm) and far-infrared (1300–2000nm), with extremely strong penetrating power that can reach approximately 30mm beneath the skin. Near-infrared rays can pass through the iris and reach the retina directly. Long-term cumulative exposure accelerates ocular tissue aging and increases the risk of eye lesions such as cataracts.
In what scenarios are Anti-IR lenses recommended?
Anti-IR lenses are ideal for outdoor work, driving, high-altitude activities, prolonged sun exposure, and any scenario with intense light environments. They are particularly suitable for users who spend extended time outdoors and need protection from both visible and invisible light damage.
Can the lenses be customized with prescription power?
Yes. Anti-IR functional optical lenses support prescription (RX) customization, available in various refractive index options (1.56, 1.60, 1.67) to accommodate different vision correction needs while maintaining full infrared protection performance.
